📋 Main Connector Pinout
🔌
Connector: 6 cables with terminals
Pin Table
| Pin | Color | Name | Function |
|---|---|---|---|
| 1 | Red | VCC | Power supply 9-90VDC |
| 2 | Black | GND | Ground |
| 3 | Pink | IGN/IN07 | Ignition detection |
| 4 | Brown/Black | IN00 | Digital input 0 |
| 5 | Purple | IN01 | Digital input 1 |
| 6 | Brown | XP00 | Digital output / Expansion |
📌
Legend: GND = Ground · VCC = Power supply · IN = Input · XP = Output

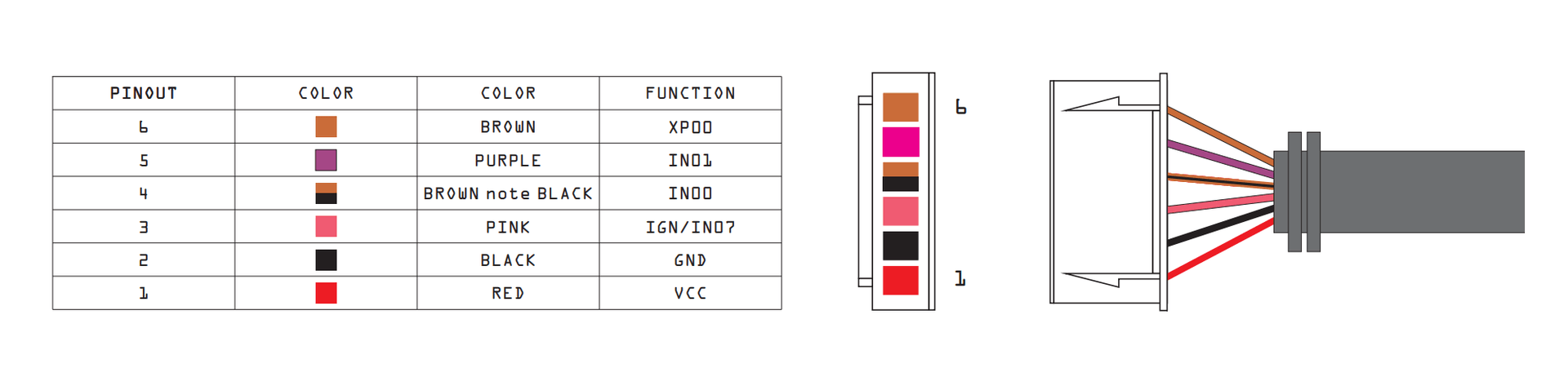

Connection Diagram
⚡ Power Connection
VCC (Pin 1)
Battery or fuse box
9-90VDC with 3A fuse
GND (Pin 2)
Solid ground point
Vehicle chassis
⚠️
Recommendations:
- ✅ Supports 9-90VDC (ideal for electric vehicles)
- ✅ Use adequate cable gauge (minimum 0.5mm²)
- ❌ Do not omit the protection fuse
